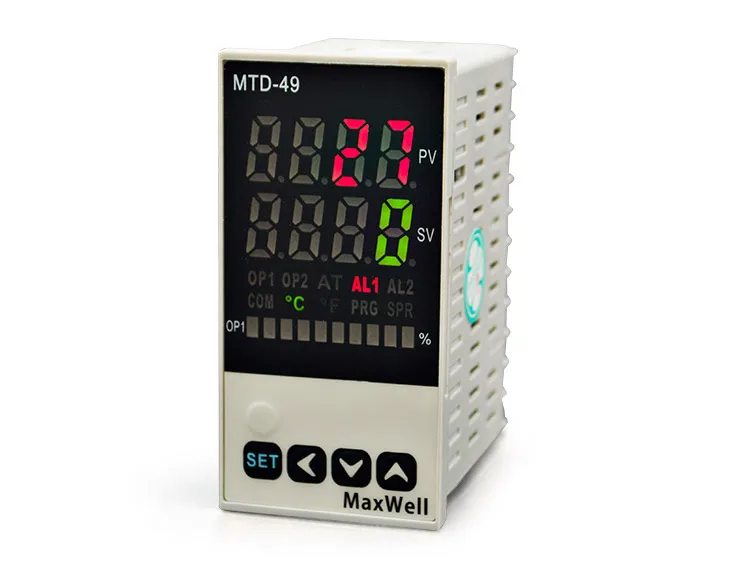

maxwell MTD-49 dual display pid controller

FOB Reference Price:Get Latest Price
US $15-20 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
10000 Piece/Pieces per Month
Port:
xiamen, shanghai, shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Maxwell
Model Number:
MTD-49-561-C-1-96-N-N-ead0
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.3%F.S
Temperature range:
-200~1300
Input:
Universal input, k, j, pt100, analong
Output:
Relay+SSR Drive field selectable
alarm:
maximum 2 alarms
Display:
Dual display upper and lower 4 digits
sampling rate:
4 times per second
control meothd:
PID ON/OFF control mode
Mounting:
panel mount
Certs:
CE
sOURCE:
85~265VAC or 24VAC/DC
AUX:
24VDC
Packaging & Delivery
Packaging Details
1 pcs per individual box
45 pcs per carton
18 kg per master carton
Delivery Time
10~12 working days after payment

MaxWell Digital Temperature Controller Features:



 *** )Dual Display,4 digits,7 sements LED Display
*** )Thermocople Input(K.E,J.T.S,R,B,N,PT100)
*** )PID,PID Autotune,ON-OFF Control Mode
*** )Built-in Relay+SSR Drive output,output field selectalbe
*** )0.3% F.S measuring accuracy
*** )Bar graphic display indication
*** )C/F display selectable
*** )Alarm Standy function
*** )Zero crossing periodic wave random trigger
*** )Phase angled random trigger
*** )Optional features:RS485 Modbus RTU Communications /Maximum 2 Alarms /Run stop function /Parameter reset to factory default valve
